Electric butterfly valves, for lines that run unattended.
DN50 to DN1200, PN10 and PN16. On/off, modulating, or fail-safe. Supplied with the actuator fitted and commissioned at the factory.
What we supply
Six configurations, one actuator interface.
The problem
Most site failures are not the valve. They are the actuator.
A butterfly valve that is stroked four times a day for ten years is a solved problem. The actuator driving it is not. Torque margin, duty cycle, and whether the unit closes on power failure are decided on the datasheet, long before the valve ships.
We size the actuator against the valve's breakaway torque at the stated differential pressure — not against the nominal torque printed on the motor. If a line runs on a 15-second cycle, we say the standard unit will not last instead of selling it to you.

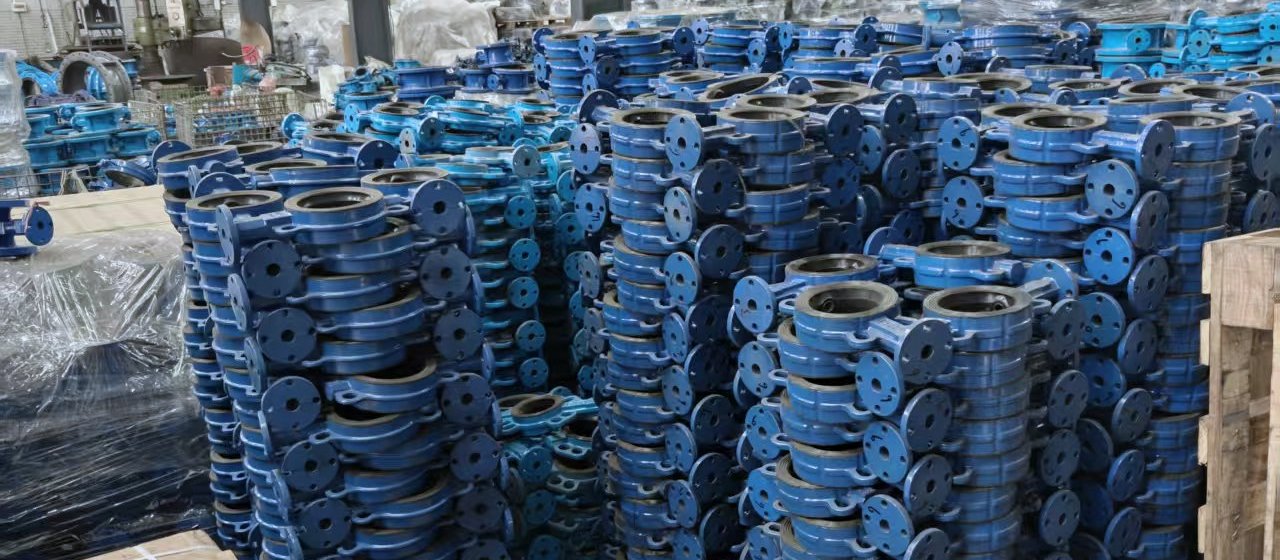

Bodies held without actuators, so the operator can be matched to the duty on the day the order is confirmed rather than the day the casting was made.
Wafer sizes · indicative
Body price, per piece.
EXW Tianjin, USD, bare shaft — actuator quoted separately against the duty. Electric and gear-operated flanged sizes are priced to the line item. Sizes above DN250 are built to order and quoted per line item.
| Size | Weight | PN10 | PN16 |
|---|---|---|---|
| DN50 | 2.2 kg | $4.74 | $4.74 |
| DN65 | 2.5 kg | $5.35 | $5.35 |
| DN80 | 3.2 kg | $6.59 | $6.59 |
| DN100 | 4.1 kg | $9.06 | $9.06 |
| DN125 | 5.7 kg | $12.77 | $13.60 |
| DN150 | 6.6 kg | $16.81 | $18.06 |
| DN200 | 10 kg | $28.65 | $32.00 |
| DN250 | 15 kg | $44.80 | $50.11 |
Project supply
We work off the valve list, not the catalogue page.
Send the line list with tag numbers. We return a submittal package: body and trim materials per line, actuator sizing with torque margin, wiring diagram, and a delivery schedule split by shipping batch.
- Range
- DN50 – DN1200
- Pressure
- PN10 · PN16 · ANSI 150
- Actuator
- On/off · modulating · fail-safe
- Documents
- Dimensional drawing · wiring · MTC
Enquiry
Send the line list.
Tag number, size, pressure class, duty and destination. We reply with a submittal package and a delivery schedule.
